HOSHIZAKI IM Ice Machines (Cube Ice)

Cube ice is perfectly symmetrical and leaves a good impression with its hard crystal clear quality that melts very slowly, allowing customers to enjoy their favorite drinks longer. Hoshizaki’s cube ice makers are easy to use and applicable for many operators.

The IM series allows more flexibility of application with each range offering ice in variable capacity alongside a design for uncomplicated usage from start to finish.

HOSHIZAKI KM models

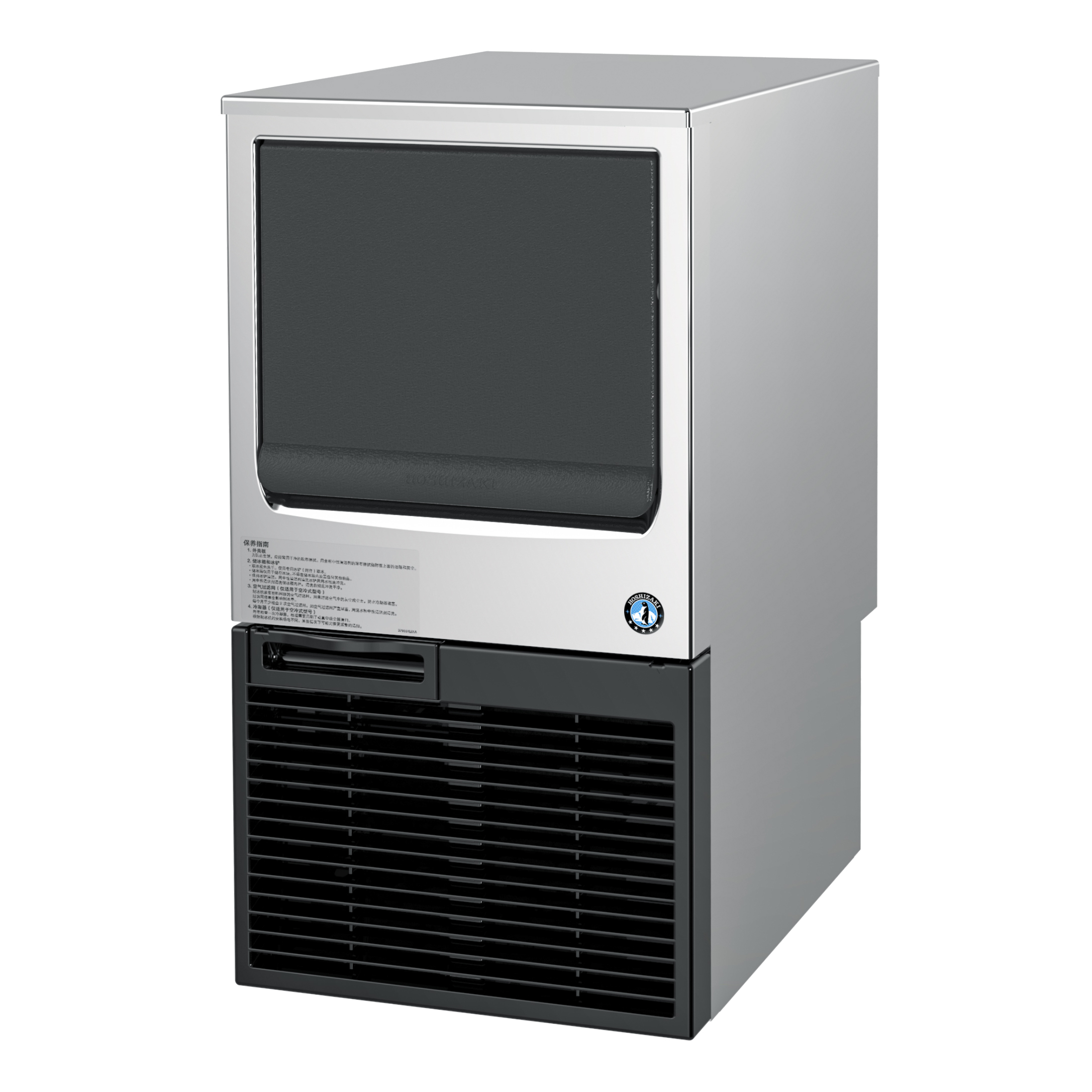

Self-Contained Type

Model	Capacity per 24h (AT 21 °C)	Storage	Dimensions (WxDxH)
IM-30CNE IM-30CNE-25	22 kg (28x28x32 mm) 18 kg (25x25x23 mm)	11.5 kg	398 x 446 x 695+100 mm

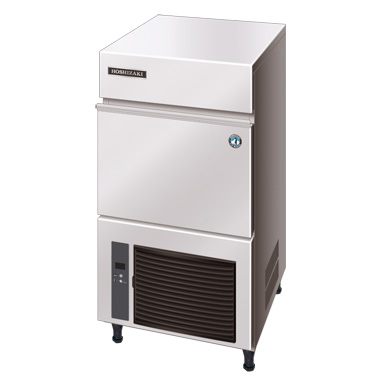

IM-45NE IM-45NE-25	32 kg (28x28x32 mm) 32 kg (25x25x23 mm)	18 kg	503 x 456 x 840+100 mm

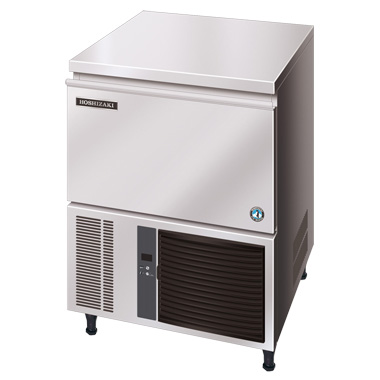

IM-45CNE IM-45CNE-25	32 kg (28x28x32 mm) 32 kg (25x25x23 mm)	15 kg	633 x 506 x 690+100 mm

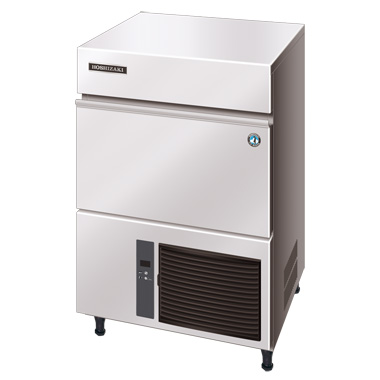

IM-65NE IM-65NE-25 IM-65NE-Q IM-65NE-LM103	47 kg (28x28x32 mm) 44 kg (25x25x23 mm) 24 kg (ø45 mm) 28 kg (103x48x58 mm)	26 kg	633 x 506 x 840+100 mm
IM-100NE IM-100NE-23	83 kg (28x28x32 mm) 79 kg (28x28x23 mm)	23 kg	704 x 506 x 1200+100 mm

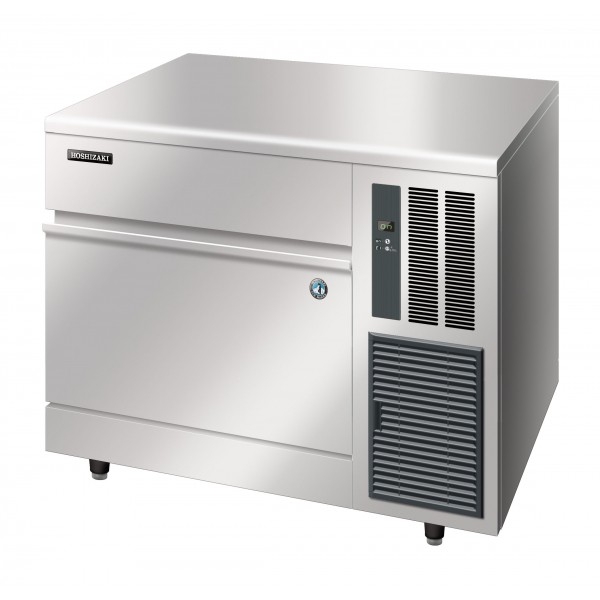

IM-100CNE IM-100CNE-23	83 kg (28x28x32 mm) 83 kg (28x28x23 mm)	38 kg	1004 x 600 x 700+100 mm

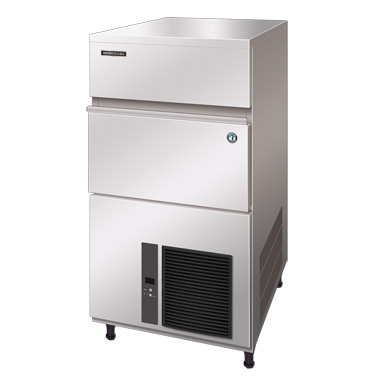

IM-130NE IM-130WNE* IM-130NE-23 IM-130WNE-23*	104 kg (28x28x32 mm) 104 kg (28x28x23 mm)	50 kg	704 x 506 x 1200+100 mm

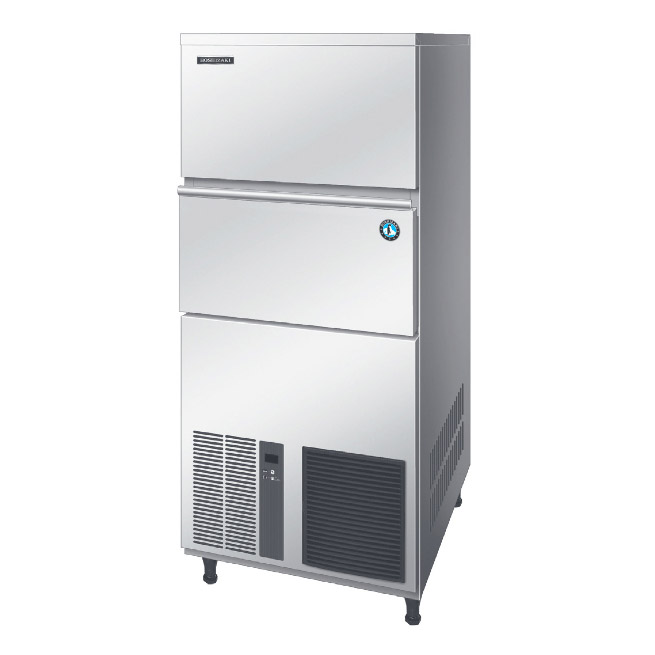

IM-240NE IM-240NE-23	230 kg (28x28x32 mm) 175 kg (28x28x23 mm)	110 kg	704 x 665 x 1510+100 mm

*water-cooled

Modular Type

Model		Capacity per 24h (AT 21 °C)	Ice Bin**	Dimensions (WxDxH)

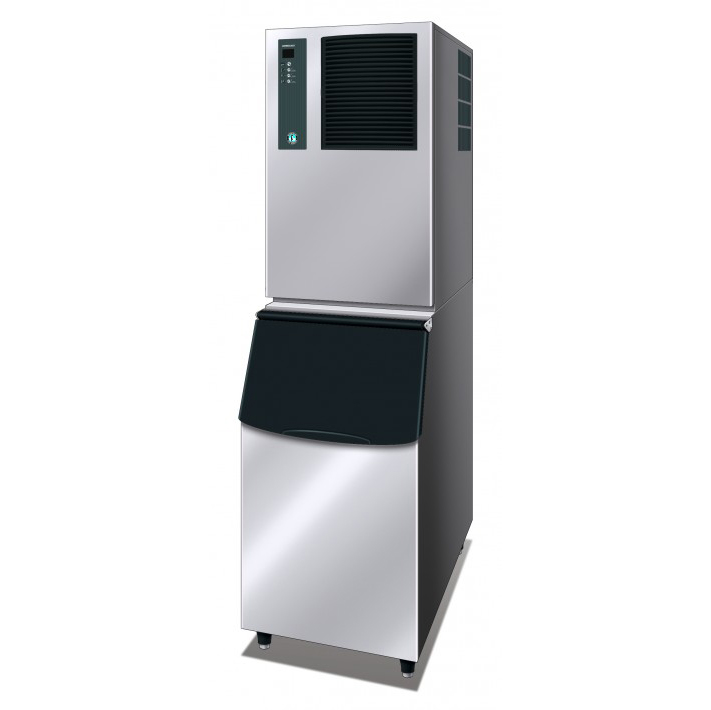

IM-240ANE IM-240AWNE IM-240ANE-23		205/215* kg (28x28x32 mm) 175/185* kg (28x28x23 mm)	B-301SA B-501SA B-801SA	560 x 700 x 880+1106 mm

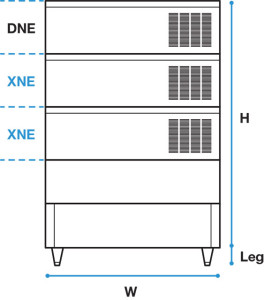

IM-240DNE IM-240DNE-23 IM-240DNE-32 IM-240DWNE* IM-240DWNE-23* IM-240DWNE-32* IM-240XNE IM-240XNE-23 IM-240XNE-32 IM-240XWNE* IM-240XWNE-23* IM-240XWNE-32*		220/202* kg (28x28x32 mm) 175/175* kg (28x28x23 mm) 175/170* kg (32x32x32 mm)	B-801SA	1084 x 700 x 500***+1106 mm
